DS26010 Rev. 5 - 3

1 of 3

www.diodes.com

PR2001 - PR2005

? Diodes Incorporated

NOT RECOMMENDED

FOR NEW DESIGN

PR2001 - PR2005

2.0A FAST RECOVERY RECTIFIER

Features

Diffused Junction

Fast Switching for High Efficiency

Surge Overload Rating to 50A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant (Note 4)

Mechanical Data

Case: DO-15

Case Material: Molded Plastic.

UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish – Tin. Solderable per MIL-STD-202,

Method 208

Polarity: Cathode Band

Marking: Type Number

Ordering Information: See Page 3

Weight: 0.4 grams (approximate)

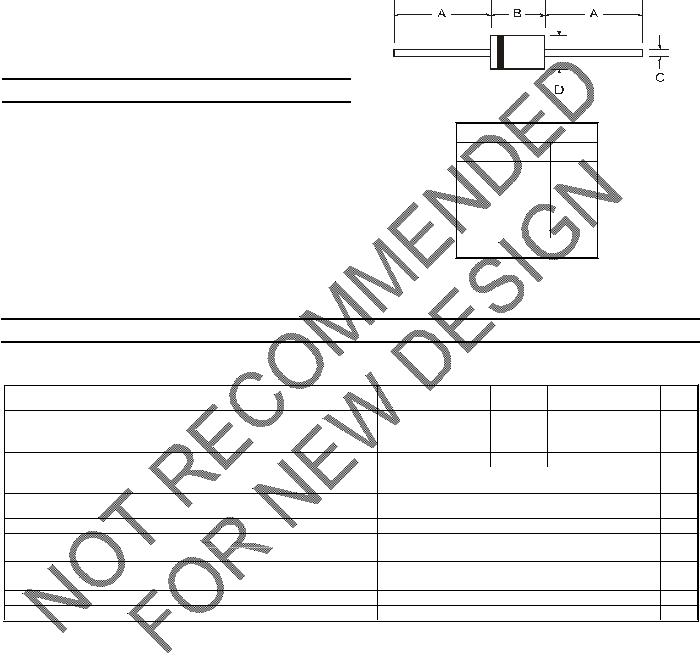

DO-15

Dim Min Max

25.40

5.50 7.62

0.686 0.889

2.60 3.6

All Dimensions in mm

Maximum Ratings and

Electrical Characteristics

@TA

= 25°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic Symbol PR

2001

2002

2003

2004

2005

Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage (Note 5)

VRRM

VRWM

50 100 200 400 600 V

RMS Reverse Voltage

VR(RMS)

35 70 140 280 420 V

Average Rectified Output Current

(Note 1) @ TA

= 50

°C

2.0 A

Non-Repetitive Peak Forward Surge Current 8.3ms

Single Half Sine-Wave Superimposed on Rated Load

IFSM

50 A

Forward Voltage @ IF

= 2.0A V

1.2 V

Peak Reverse Current @ TA

= 25

°C

at Rated DC Blocking Voltage (Note 5) @ TA

= 100

°C

IRM

5.0

100

μA

Reverse Recovery Time (Note 3)

trr

150 250 ns

Typical Total Capacitance (Note 2)

35 15 pF

Typical Thermal Resistance Junction to Ambient

RθJA

50 °C/W

Operating and Storage Temperature Range

Tj, TSTG

-65 to +150

°C

Notes: 1. Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.

2. Measured at 1.0MHz and applied reverse voltage of 4.0 V DC.

3. Measured with IF

= 0.5A, I

= 1.0A, I

= 0.25A. See figure 5.

4. RοHS revision 13.2.2003. High temperature solder exemption applied, see EU Directive Annex Note 7.

5. Short duration pulse test used to minimize self-heating effect.
